Question: a 90 v battery is connected to four resis tors...

Question details
A 9.0 V battery is connected to four resis- tors, as shown.
Calculate the current in the top 10 Ω resistor.
Answer in units of A.
Calculate the current in the 4.0 Ω resistor (second from the top)
Answer in units of A.

Calculate the current in the 6.0 Ω resistor (third from the top).
Answer in units of A.

Calculate the current in the 3.0 Ω resistor
(fourth from the top). Answer in units of A.

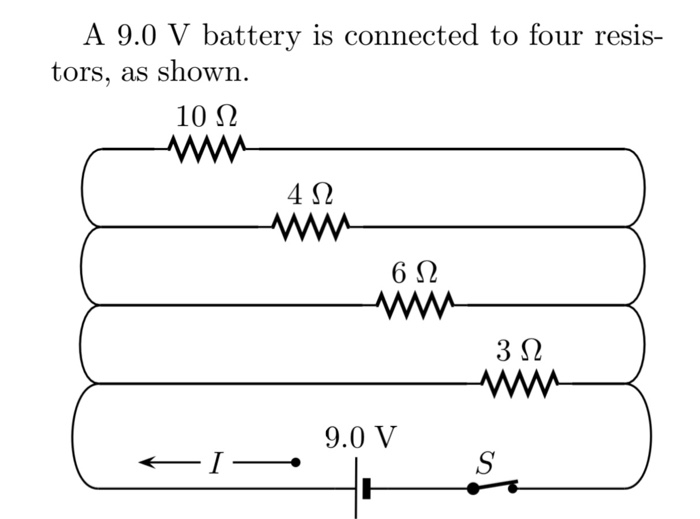

A 9.0 V battery is connected to four resis- tors, as shown 10 2 4 S 3 52 9.0 V
