Question: a beam is supported and loaded find the reactions maximum...

Question details

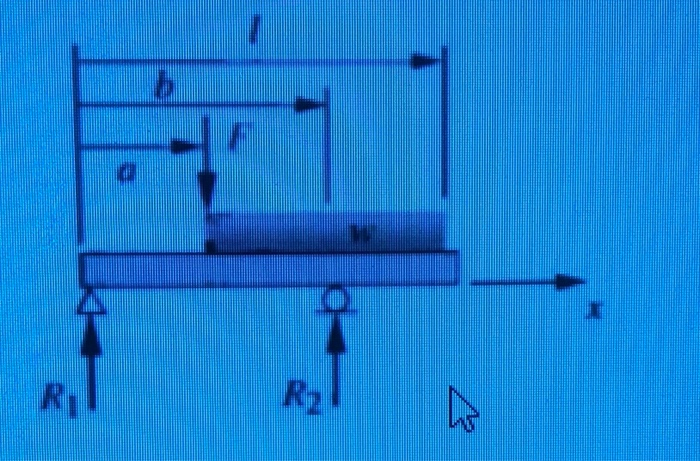

A beam is supported and loaded. Find the reactions, maximum shear, maximum moment, maximum slope, maximum bending stress, and maximum deflection. Using:
l=.30
a=.10
b=.20
w=500
F=450
RI
