  3. answer is yield moment 704 and plastic moment...

Question: answer is yield moment 704 and plastic moment...

Question details
Answer is = yield moment 7.04 , and plastic moment is 8.72 , but unsure to what the si units are ?? Can plz show steps

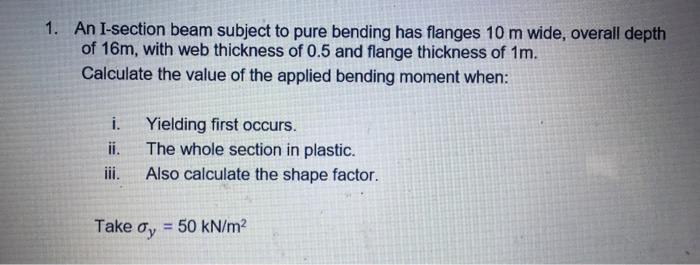

1. An I-section beam subject to pure bending has flanges 10 m wide, overall depth of 16m, with web thickness of 0.5 and flange thickness of 1m. Calculate the value of the applied bending moment when: i. Yielding first occurs. ii. The whole section in plastic. ii. Also calculate the shape factor. Take ơy-50 kN/m2
Solution by an expert tutor
Blurred Solution
This question has been solved
Subscribe to see this solution
