  3. convert the isometric drawing into orthographic drawings showing as many...

Question: convert the isometric drawing into orthographic drawings showing as many...

Question details

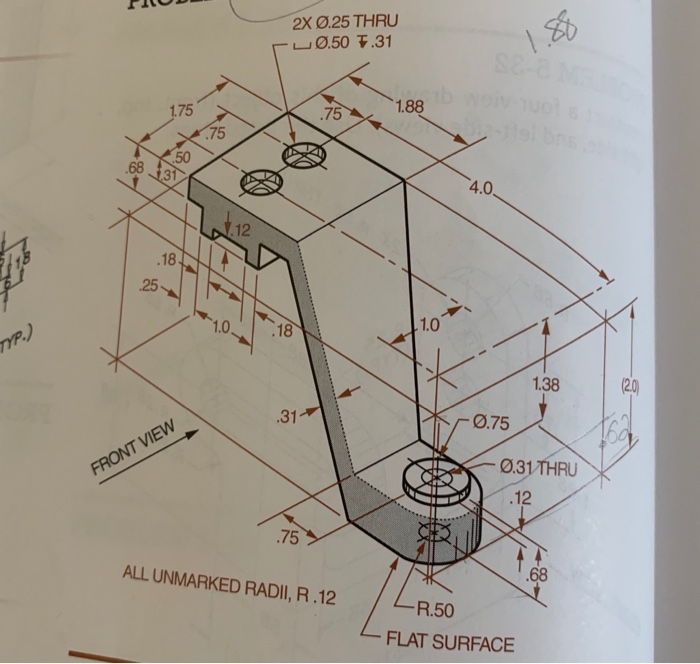

Convert the isometric drawing into orthographic drawings, showing as many views necessary to communicate the design and fully dimension your drawing
2X 0.25 THRU -L-0.50天.31 1.88 1.75 75 75 .68 4.0 12 18 .25 1.0, 18 1.0 1.38 20 .31 0.31 THRU .12 .75 68 ALL UNMARKED RADI, R.12 R.50 FLAT SURFACE
