Question: could you please show all the steps to find the...

Question details
Could you please show all the steps to find the dimensional analysis for this variables?

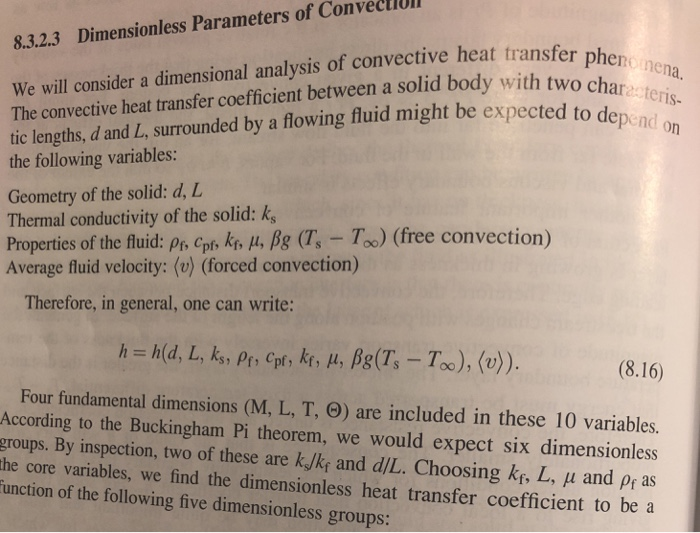

8.3.2.3 Dimensionless Parameters of ConvecllO We will consider a dimensional analysis of convective heat transfer The convective heat transfer coefficient between a solid body with two tic lengths, d and L, surrounded by a flowing fluid might be expected to de pheno nena depend on the following variables Geometry of the solid: d, L Thermal conductivity of the solid: k Properties of the fluid: Pr, cpf, kf, μ, fig (Ts-To) (free convection) Average fluid velocity: (v) (forced convection) Therefore, in general, one can write: (8.16) Four fundamental dimensions (M, L, T, ) are included in these 10 variables. According to the Buckingham Pi theorem, we would expect six dimensionles groups. By inspection, two of these are k/ky and dIL. Choosing ks, L, u and pr as he core variables, we find the dimensionless heat transfer coefficient to be a unction of the following five dimensionless groups:
