Question: figure shows 2 pipes transporting fluids connected by an inclined...

Question details

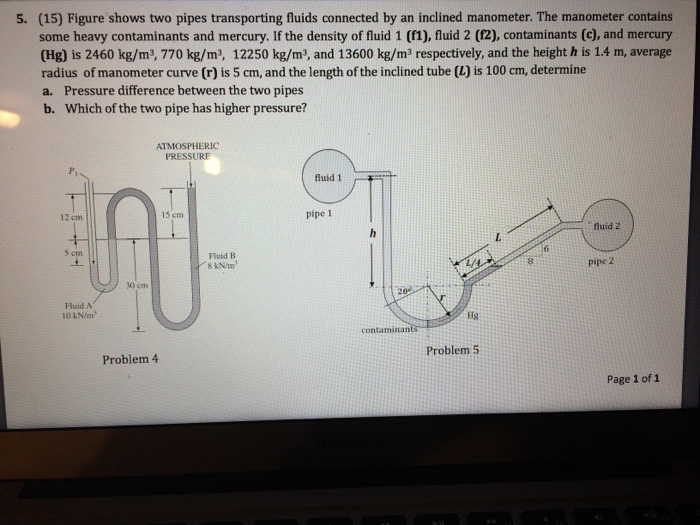

Figure shows 2 pipes transporting fluids connected by an inclined manometer. The manometer contains some heavy contaminats and mercury.
5. (15) Figure shows two pipes transporting fluids connected by an inclined manometer. The manometer contains some heavy contaminants and mercury. If the density of fluid 1 (f1), fluid 2 (f2), contaminants (c), and mercury (Hg) is 2460 kg/m3, 770 kg/m, 12250 kg/m3, and 13600 kg/m3 respectively, and the height h is 1.4 m, average radius of manometer curve (r) is 5 cm, and the length of the inclined tube (L) is 100 cm, determine a. Pressure difference between the two pipes b. Which of the two pipe has higher pressure? ATMOSPHERIC PRESSURF 12 cm 15 cm pipe 1 fluid 2 5 em Fluid B S kN/tm .6 8 pipe 2 30 cm 20 Huid A 10 kN/m Hg contaminan Problem 4 Problem 5 Page 1 of 1
Solution by an expert tutor
Blurred Solution
This question has been solved
Subscribe to see this solution
