  3. for the following structures draw shear force diagrams and bending...

Question: for the following structures draw shear force diagrams and bending...

Question details

d) 2 k/ft 40 k 1 25 k-ft 10 ft 10 ft 10 ft 10 ft d) 3 k/ft 2 k/ft 30 ft 20 ft

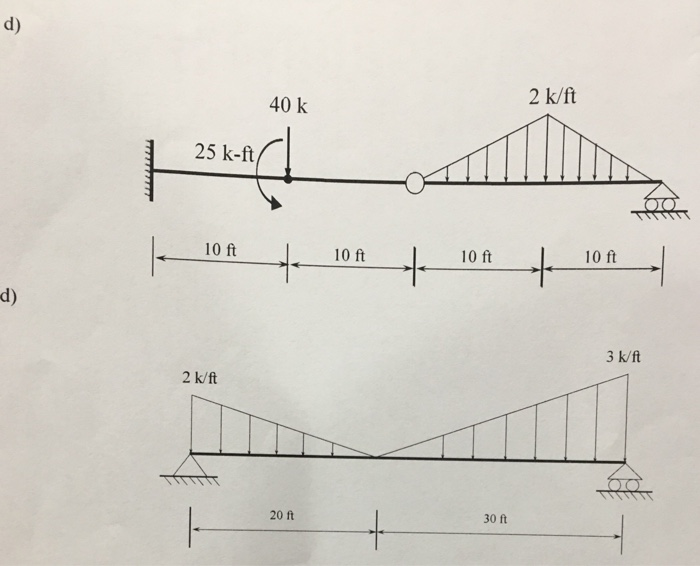

For the following structures, draw SHEAR FORCE DIAGRAMS AND BENDING MOMENT DIAGRAMS.
