Question: hello this is for a cnc class and writing g...

Question details
Hello this is for a CNC class and writing G code. Can someone please help me with the “Canned cycle” exercise ?

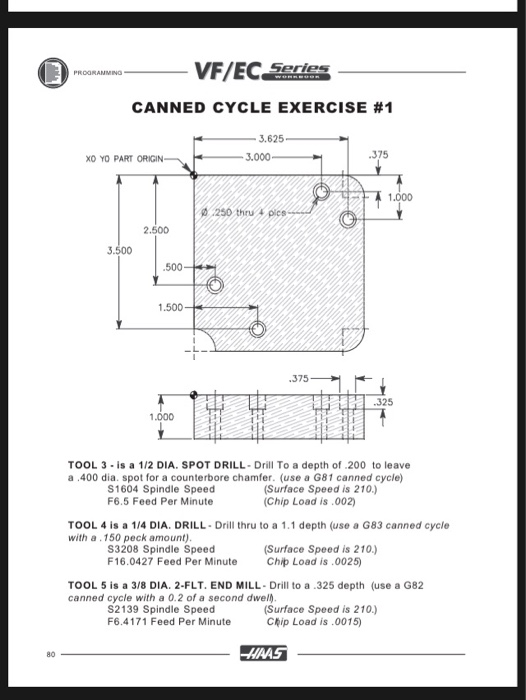

CANNED CYCLE EXERCISE #1 3.625 3.000 375 XO YO PART ORIGIN 1.000 .250 thru 4 2.500 500 1.500 375 325 1.000 TOOL 3-is a 1/2 DIA. SPOT DRILL-Drill To a depth of .200 to leave a.400 dia. spot for a counterbore chamfer. (use a G81 canned cycle) S1604 Spindle Speed F6.5 Feed Per Minute Surface Speed is 210.) Chip Load is .002) TOOL 4 is a 1/4 DIA. DRILL- Drill thru to a 1.1 depth (use a G83 canned cycle with a.150 peck amount) S3208 Spindle Speed F 16.0427 Feed Per Minute Surface Speed is 210.) ChやLoad is .0025) TOOL 5 is a 3/8 DIA. 2-FLT. END MILL- Drill to a .325 depth (use a G82 canned cycle with a 0.2 of a second dwel S2139 Spindle Speed F6.4171 Feed Per Minute (Surface Speed is 210.) Chip Load is .0015) 80

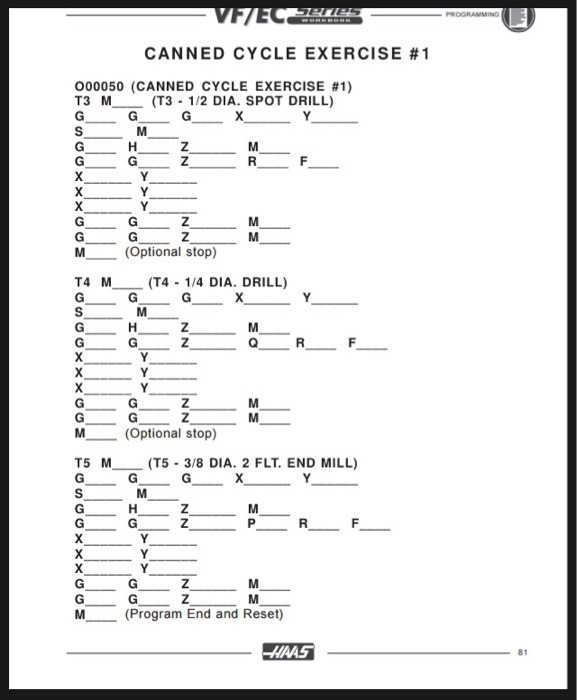

CANNED CYCLE EXERCISE #1 000050 (CANNED CYCLE EXERCISE #1) T3 M (T3 1/2 DIA. SPOT DRILL) M (Optional stop) T4 M (T4-1/4 DIA. DRILL) (Optional stop) TS M (T5-3/8 DIA. 2 FLT, END MILL) (Program End and Reset) HAAS 81
