Question: homeworlk assignment 224 determine the equivalent torsional stiffness transferred to...

Question details

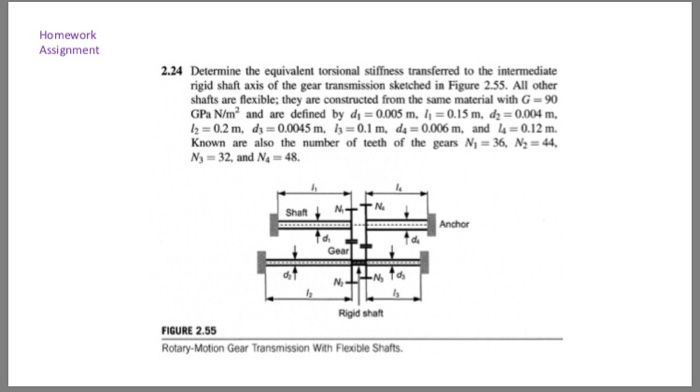

Homeworlk Assignment 2.24 Determine the equivalent torsional stiffness transferred to the intermediate rigid shaft axis of the gear transmission sketched in Figure 2.55. All other shafts are flexible; they are constructed from the same material with G-90 GPa N/m and are defined by d,-0.005 m. I,-0.15 m, d2=0.004 m. 20.2 m, d 0.0045 m, -0.1 m, ds- 0.006 m, and 4 0.12 m. Known are also the number of teeth of the gears N 36 N2-44 N32, and N4-48 Anchor Gear Rigid shaft FIGURE 2.55 Rotary-Motion Gear Transmission With Flexible Shafts
Solution by an expert tutor
Blurred Solution
This question has been solved
Subscribe to see this solution
