Question: i had to simulate the following circuit on software and...

Question details

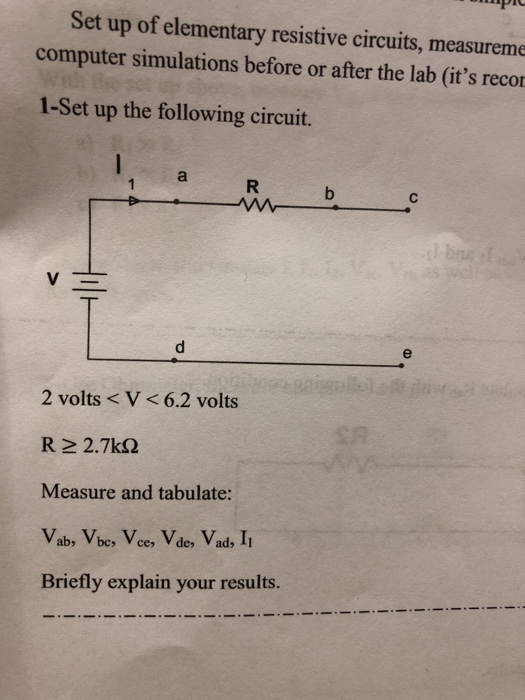

Set up of elementary resistive circuits, measureme computer simulations before or after the lab (its reco 1-Set up the following circuit. 2 volts < V<6.2 volts R 2 2.7k Measure and tabulate: Briefly explain your results.
media%2F227%2F2276ccec-714d-444a-9082-80

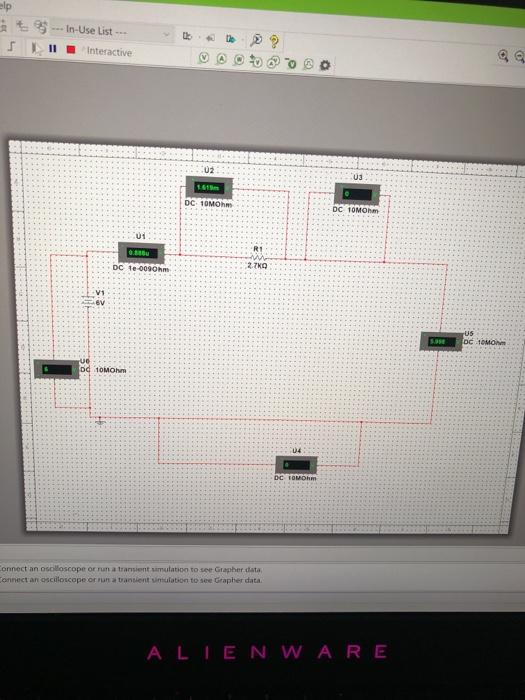

I had to simulate the following circuit on software and received these values. Are they correct? I thought there would be no current since it’s an open circuit? Also why do I have (1.619*10-3) volts across my resistor..
