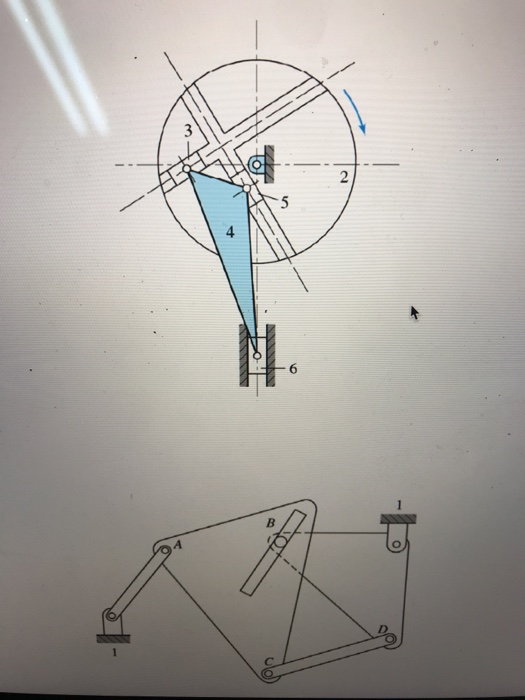

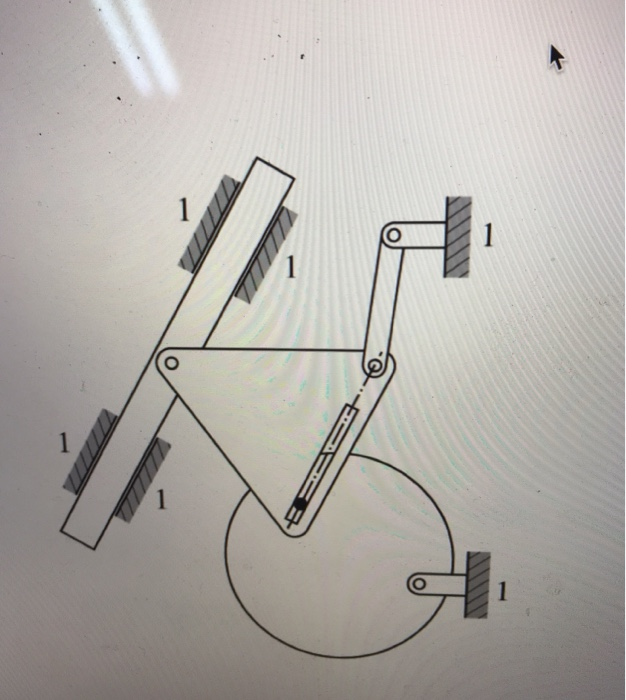

In each of the following mechanisms, identify the number of each type of joints and then determine its mobility. You may use the following abbreviations:

Abbreviations: RVJRevolute joint; PSJPrismatic Joint; RCJRolling Contact Joint; SCJSliding Contact Joint (Cam joint or Pin-in-slot joint)


media%2F428%2F428ca7a1-9266-4d58-9ee4-43

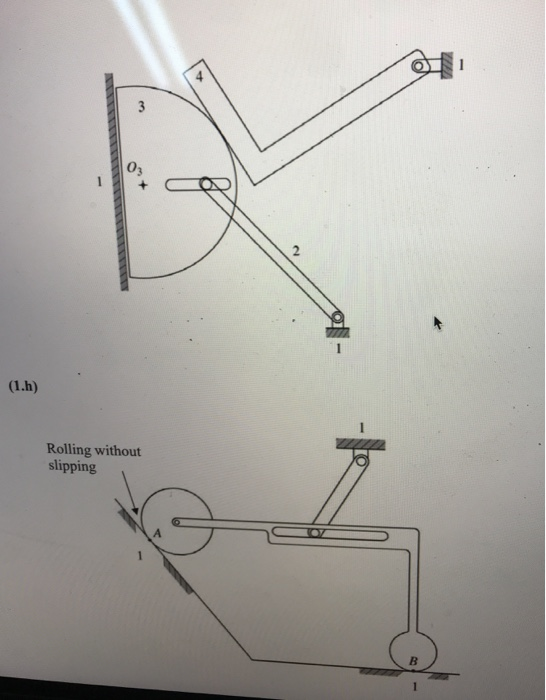

03 Rolling without slipping
