  3. part of a control linkage for an airplane consists of...

Question: part of a control linkage for an airplane consists of...

Question details
Part of a control linkage for an airplane consists of a rigid member CB=800mm and a flexible cable AB. AC=600mm. If a force is applied to the end B of the member and causes it to rotate by theta=0.45 degrees. Determine the normal strain in the cable.

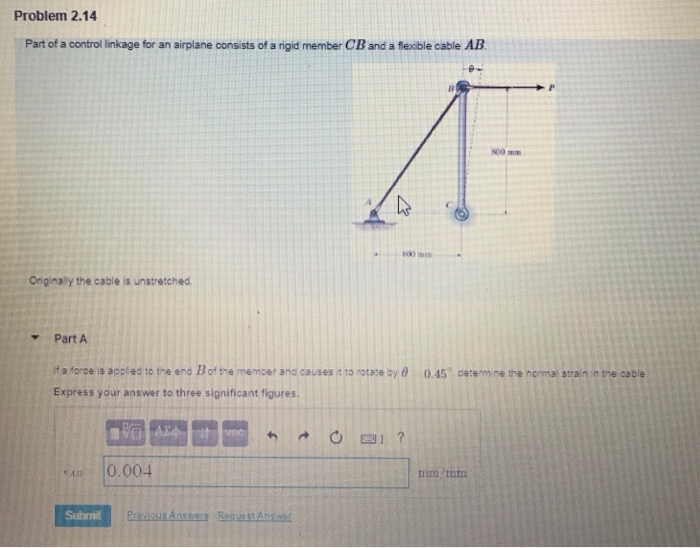

Problem 2.14 Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB L 00 Originaly the cable is unstretched Part A jf a fote is apol ed to tne end Bof tne menser snd causes it to rotate by θ Express your answer to three significant figures 0.45, cerem ne the noma stran n the aable 0.004 Suhnit
