please answer 2 but you need the info from...

Question: please answer 2 but you need the info from...

Question details

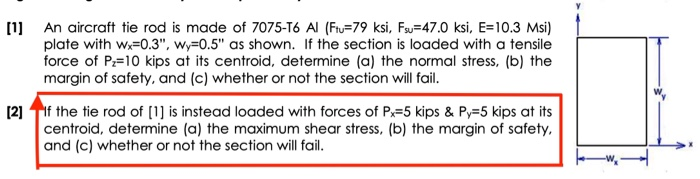

[1 An aircraft tie rod is made of 7075-T6 Al (Fu-79 ksi, Fu 47.0 ksi, E-10.3 Msi) plate with w-0.3, Wy-0.5 as shown. If the section is loaded with a tensile force of P 10 kips at its centroid, determine (a) the normal stress, (b) the margin of safety, and (c) whether or not the section will fail. 2 If the tie rod of 1 is instead loaded with forces of P-5 kips & Py-5 kips at its centroid, determine (a) the maximum shear stress, (b) the margin of safety. and (c) whether or not the section will fail.

Please answer #2 , but you need the info from #1.

Answer for #2 :

a. 47.1 ksi

b. MS= -0.003

c. Fails

Solution by an expert tutor

Blurred Solution

This question has been solved

Subscribe to see this solution
