  3. please show full working for my understanding answers given are...

Question: please show full working for my understanding answers given are...

Question details

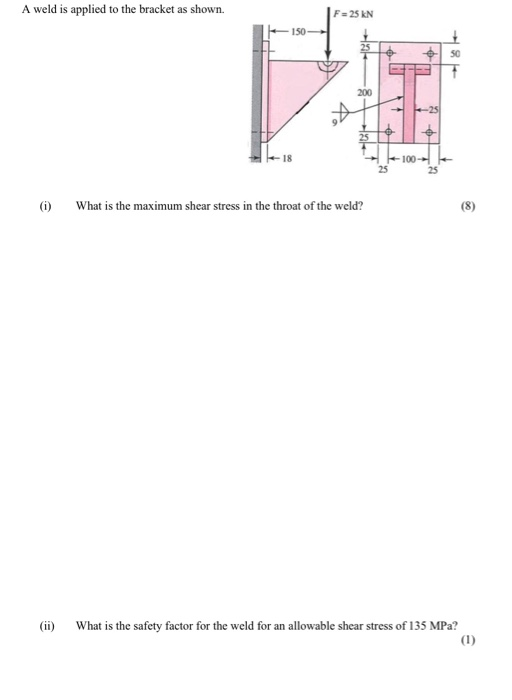

A weld is applied to the bracket as shown. F 25 KN 150 50 200 25 18 -100- 25 25 (i) What is the maximum shear stress in the throat of the weld? (ii) What is the safety factor for the weld for an allowable shear stress of 135 MPa?
Please show full working for my understanding. Answers given are:

(I) 45.3 MPa
(Ii) 2.98
