Please show full working for my understanding. Required data is below the questions. Thanks!

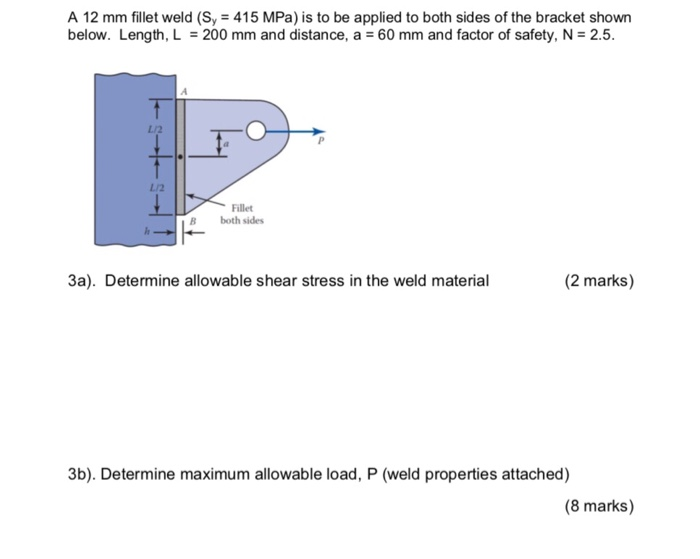

A 12 mm fillet weld (Sy 415 MPa) is to be applied to both sides of the bracket shown below. Length, L = 200 mm and distance, a = 60 mm and factor of safety, N = 2.5. L/2 L/2 Fillet B both sides 3a). Determine allowable shear stress in the weld material (2 marks) 3b). Determine maximum allowable load, P (weld properties attached) (8 marks)

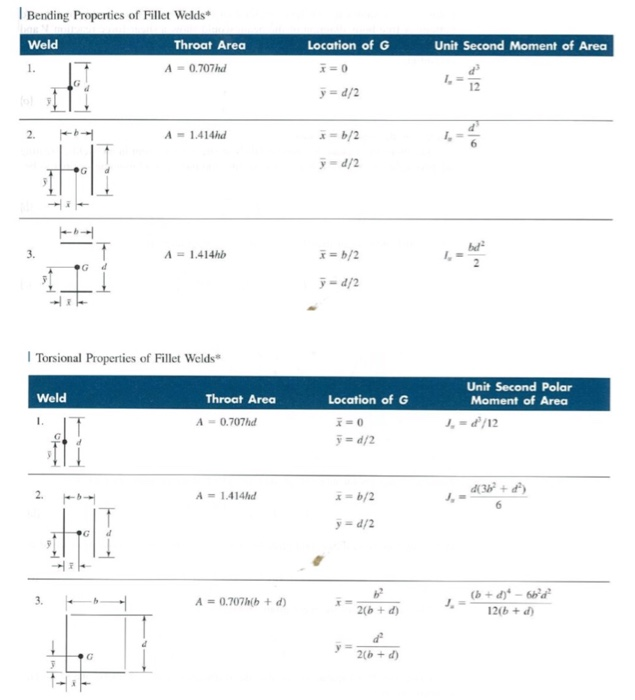

l Bending Properties of Fillet Welds Weld Throat Area Location of G Unit Second Moment of Area 1. A 0.707hd 12 y- d/2 2. A 1.414ha/ у d/2 3. A1.414hb b/2 G d y- d/2 l Torsional Properties of Fillet Welds Unit Second Polar Moment of Area Weld Throat Area Location of G A0.707hd A-1.414hd ab/2 3. A0.70hb +d) 2(b +d) 12( +d y-2(b + d)
