  3. please show me each step please be very clear and...

Question: please show me each step please be very clear and...

Question details
Please show me each step please be VERY CLEAR and VERY NEAT. I need to understand it to study thank you

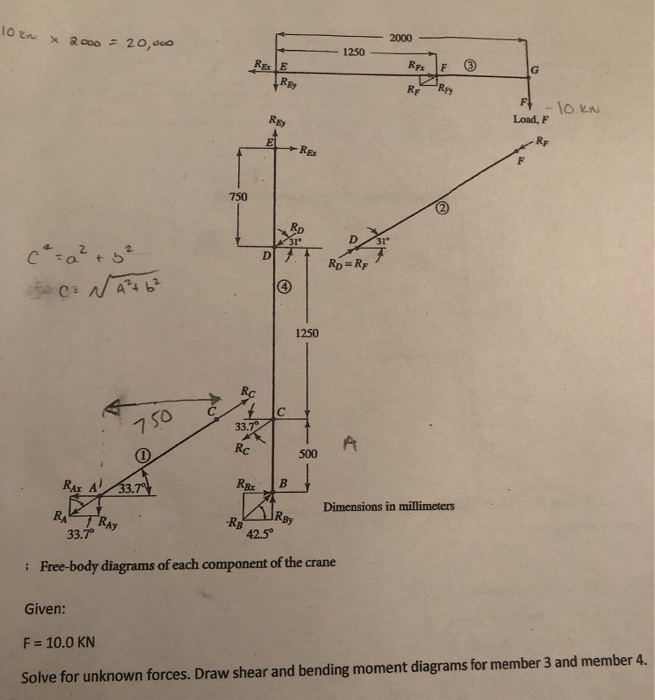

2000 1250 자 _loLN Load, F RF 750 Ro D 31 4 2 2 1250 33.7 Rc 500 Dimensions in millimeters -R 33.7° 42.5。 Free-body diagrams of each component of the crane Given: F 10.0 KN Solve for unknown forces. Draw shear and bending moment diagrams for member 3 and member 4.
