Question: please someone help me with this question f is the...

Question details
Please someone help me with this question! F is the feeding stream

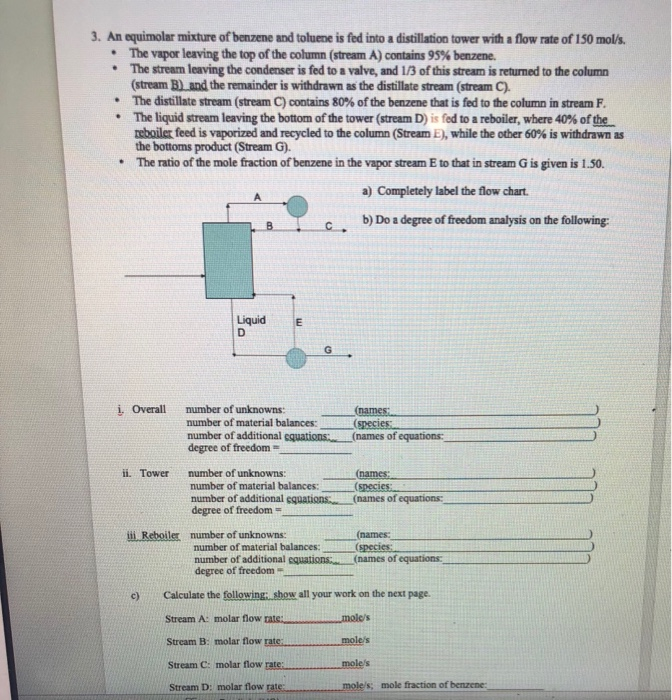

3. An equimolar mixture of benzene and toluene is fed into a distillation tower with a flow rate of 150 mols. *The stream leaving the condenser is fed to a valve, and 1/3 of this stream is returned to the column * The distillate stream (stream C) contains 80% ofthe benzene that is fed to the column in stream F. The vapor leaving the top ofthe column (stream A) contains 95% benzene. (stream B) and the remainder is withdrawn as the distillate stream (stream C) The liquid stream leaving the bottom of the tower (stream D) s fed to a reboiler, where 40% of the mboue feed is vaporized and recycled to the column (Stream L),while the other 60% is withdrawn as the bottoms product (Stream G). The ratio of the mole fraction of benzene in the vapor stream E to that in stream G is given is 1.50. * a) Completely label the flow chart. b) Do a degree of freedom analysis on the following: c . Liquid E i. Overall number of unknowns(names number of material balances: number of additional cquations:. (names of equations: degree of freedom ii. Towernmber of unknowns:(names: number of material balances:(species number of additional cquations. (names of equations degree of freedom - (names number of material balances: number of additional equations.. degree of freedom + (names of equations Calculate the following; show all your work on the next page. Stream A: molar flow rats. moles Stream B: molar flow rate Stream C: molar flow rate:moles Stream D: molar flow rat c) moles moles: mole fraction of benzene

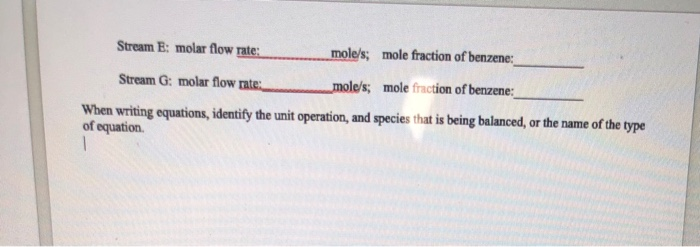

Stream E: molar flow rate: mole/s; mole fraction of benzene: Stream G: molar flow rate. mole/s; mole fraction of benzene: When writing equations, idenify the unit operation, and specis hat is being balanced,or the name of the type of equation.
