Question: rigid beam abc is supported as shown in the figure...

Question details

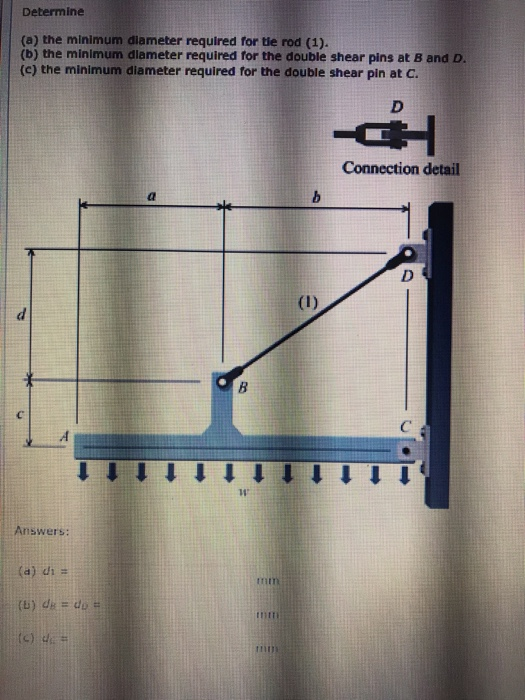

Rigid beam ABC is supported as shown in the figure. The pin connectedness at B, C, and D are each double shear connections. The ultimate shear strength of the pin material is 640mPa. Tie rod (1) has a yield strength of 350 mPa. A uniformly distributed load of w = 13 kN/m is applied to the beam as shown. A factor of safety of 2.5 is required for all components l. Assume: a = 650 mm , b = 775 mm , c = 325 mm , and d = 575 mm DETERMINE:

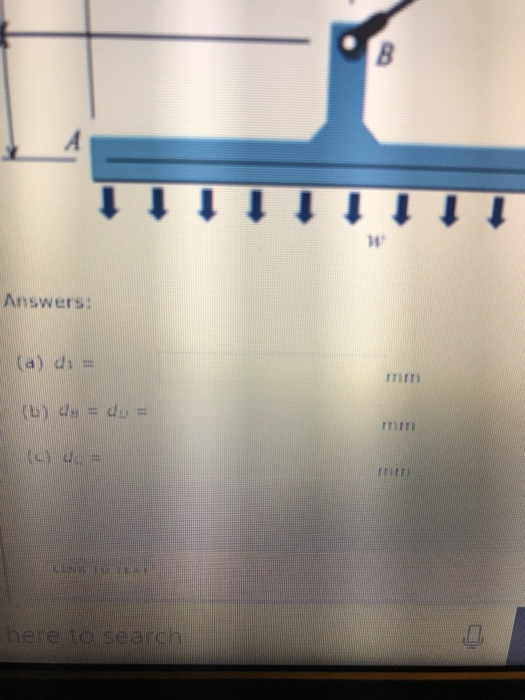

Determine (a) the minimum diameter required for tie rod (1). (b) the minimum diameter required for the double shear pins at B and D. (e) the minimum diameter required for the double shear pin at C Connection detail Answers: trit (u) d: - do
Answers: (b) ds
