  3. structural analysis tutorial week sstatically indeterminate beams and unbraced framesdisplacement...

Question: structural analysis tutorial week sstatically indeterminate beams and unbraced framesdisplacement...

Question details

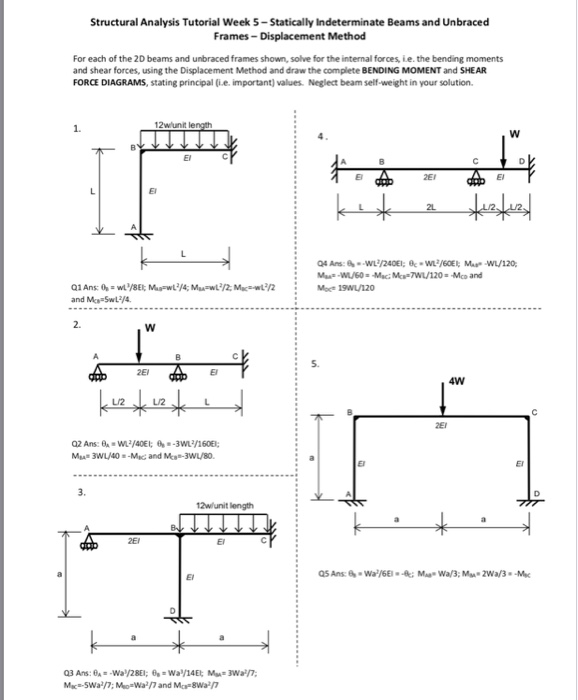

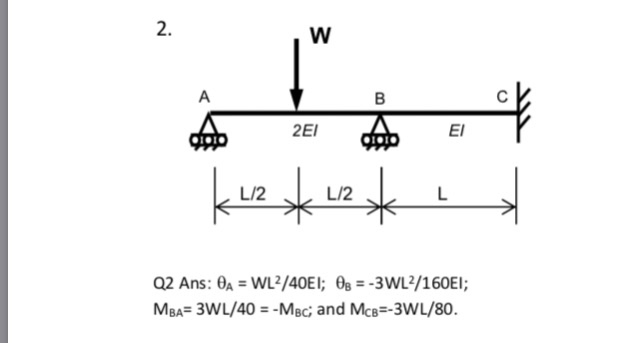

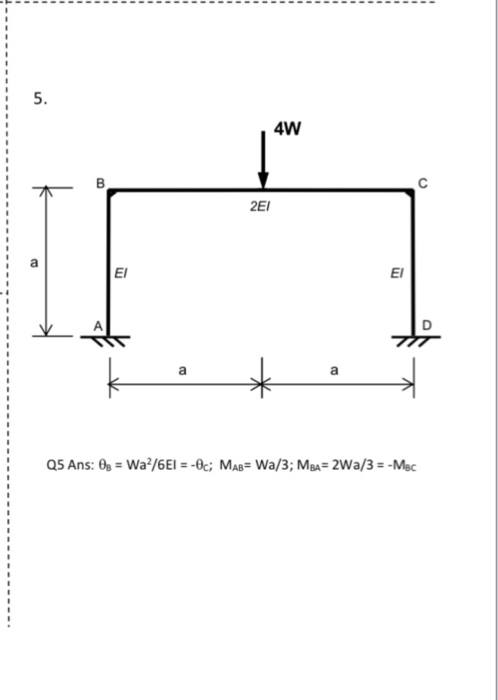

Structural Analysis Tutorial Week S-Statically Indeterminate Beams and Unbraced Frames-Displacement Method For each of the 2D beams and unbraced frames shown, solve for the internal forces, ie. the bending moments and shear forces, using the Displacement Method and draw the complete BENDING MOMENT and SHEAR FORCE DIAGRAMS, tating principal (ie. important) values. Neglect beam self-weight in your solution. 12wunit length 티 2EI El and Ma-Swl/4 2. :5 4W L/2 L/2 12wlunit length
media%2F3e4%2F3e4209d6-ea71-442e-ab5e-ed

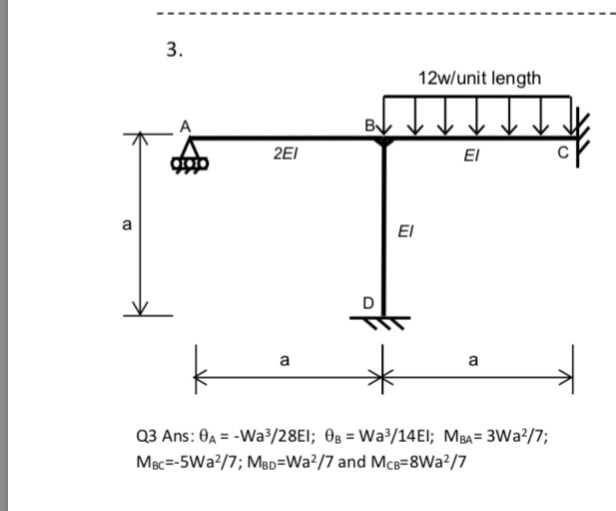

3. 12w/unit length 2EI El El

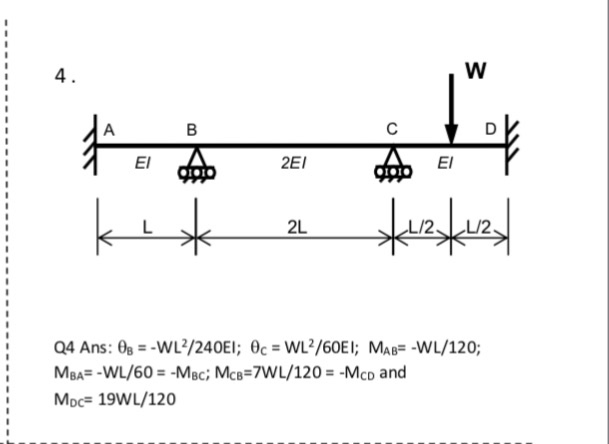

4 El El 2EI 2L MBA=-WL/60:-Mac; McBx7wL/120 =-MCD and MDC= 19wL/120
media%2F01f%2F01fa32a1-53f6-4d1a-9bcc-71
Solution by an expert tutor
Blurred Solution
This question has been solved
Subscribe to see this solution
