The commercial steel pipeline depicted in the figure is 200m long and has a diameter of 0.45m. Determine the height of the water tower (h) if the flow rate is 0.85m^3/s. Assume that minor losses are negligible and a water temperature is 4 degrees Celsius.
Answer should be 7.85m

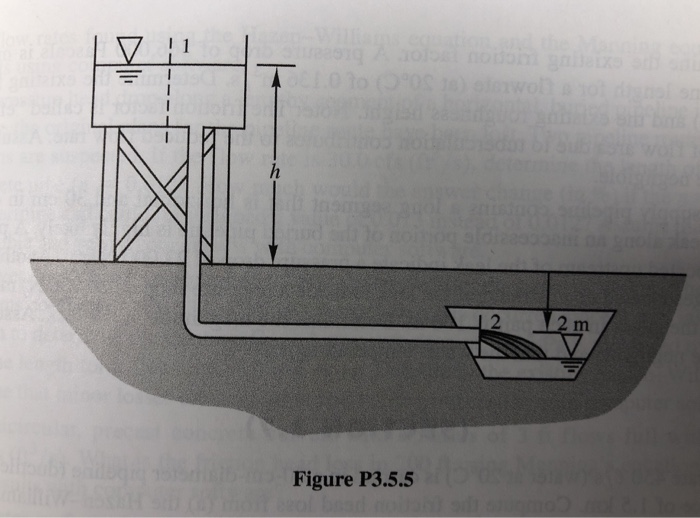

Figure P3.5.5
The commercial steel pipeline depicted in Figure P3.5.5 is 200 m long and has a diameter of 0.45 m Determine the height of the water tower (h) if the flow rate is 0.85 m3/s. Assume that minor losses are negligible and a water temperature is 4°C.

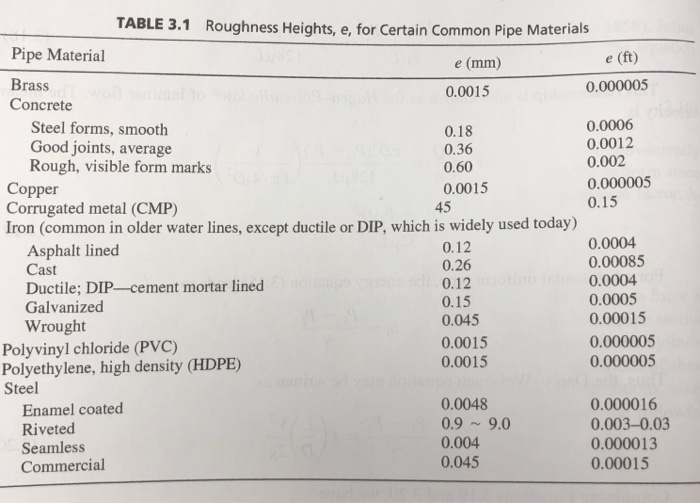

TABLE 3.1 Roughness Heights, e, for Certain Common Pipe Materials Pipe Material Brass Concrete e (mm) e (ft) 0.0015 0.000005 Steel forms, smooth Good joints, average Rough, visible form marks 0.18 0.36 0.60 0.0015 0.0006 0.0012 0.002 0.000005 0.15 Copper Corrugated metal (CMP) Iron (common in older water lines, except ductile or DIP, which is widely used today) 45 Asphalt lined Cast Ductile; DIP-cement mortar lined Galvanized Wrought 0.12 0.26 0.12 0.15 0.045 0.0015 0.0015 0.0004 0.00085 0.0004 0.0005 0.00015 0.000005 0.000005 Polyvinyl chloride (PVC) Polyethylene, high density (HDPE) Steel Enamel coated Riveted Seamless Commercial 0.0048 0.9 ~9.0 0.004 0.045 0.000016 0.003-0.03 0.000013 0.00015
