Question: the question is number 4 the matlab question for this...

Question details
The question is number 4 the matlab question. For this question please provide the script used in matlab to do the plots and the plots themselves .
The other 2 pictures are information for that question.
Thanks
4. In Matlab make a discrete time version of the pulse train in #2 given a sample rate, f 10 fo and take its FFT. Plot the time domain and frequency domain results and label the x & y axes appropriately.

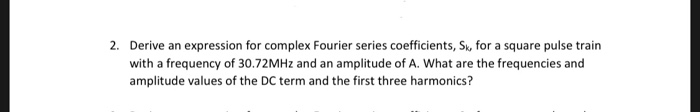

2. Derive an expression for complex Fourier series coefficients, Sk, for a square pulse train with a frequency of 30.72MHz and an amplitude of A. What are the frequencies and amplitude values of the DC term and the first three harmonics?
in に [.iwen..i] 145) lst homoni, second haam Third harmonie, 32A 感econd harmonic : 2X궁0-12 二11.44 MHz third
