  3. traceanalyze the following circuit and figure out what it does...

Question: traceanalyze the following circuit and figure out what it does...

Question details
Trace/analyze the following circuit, and figure out what it does.

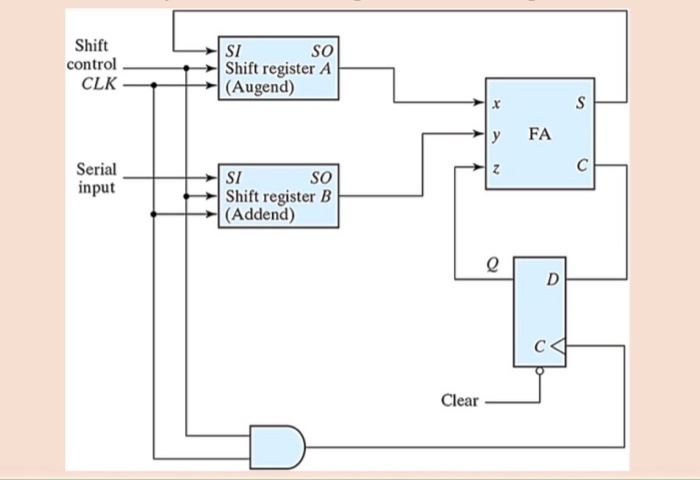

Shift control SI Shift register A so CLK (Augend) yFA Serial so Shift register B (Addend) 0 Clear
