Question: tutorial 3week 3elasticplastic properties of beams rigid plastic collapse analysis...

Question details

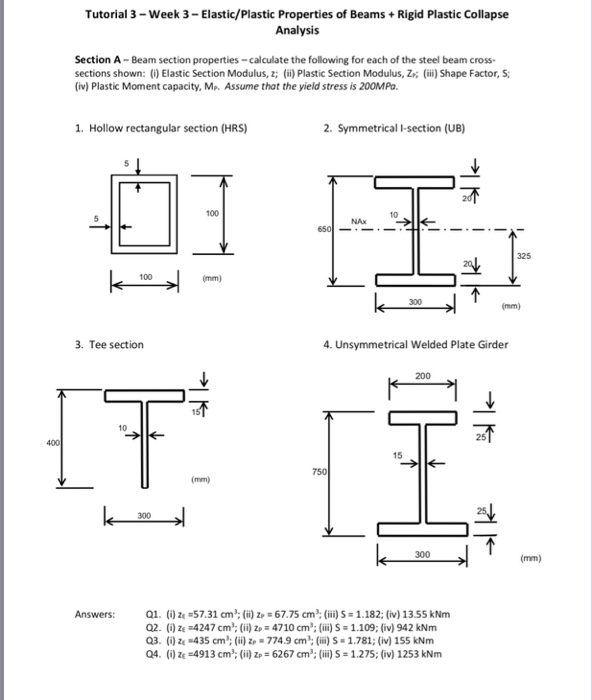

Tutorial 3-Week 3-Elastic/Plastic Properties of Beams +Rigid Plastic Collapse Analysis Section A-Beam section properties-calculate the following for each of the steel beam cross sections shown: (i) Elastic Section Modulus, z; (ii) Plastic Section Modulus, ZK (iii) Shape Factor, S; (iv) Plastic Moment capacity, Mp. Assume that the yield stress is 200MPa 1. Hollow rectangular section (HRS) 2. Symmetrical I-section (UB) 100 10 NAx 325 100 300 3. Tee section 4. Unsymmetrical Welded Plate Girder 10 25 15 750 300 300 Answers 67.75 cm 2. () ze 4247 cm; (ii) zp 4710 cm: (ii) S 1.109; (iv) 942 kNm Q3. () ze 435 cm: (ii) zp 7749 cm: (i)S 1.781; (iv) 155 kNm Q4. () ZE-4913 cm: (ii) p 6267 cm2: (ii)S 1.275; (iv) 1253 kNm ) ze57.31 cm: ()z (i)S 1.182; (iv) 13.55 kNm

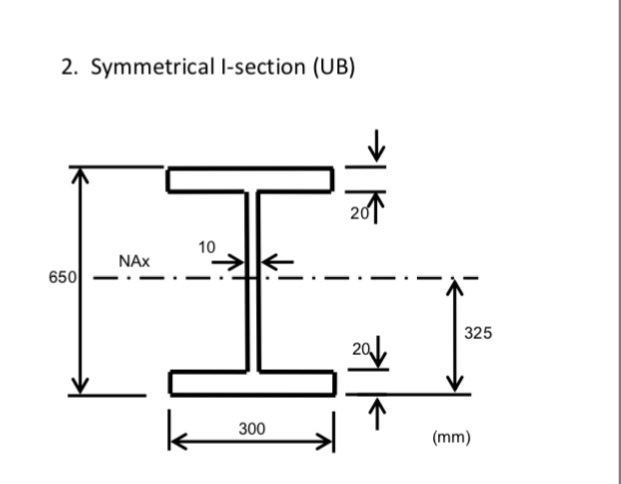

2. Symmetrical I-section (UB) 10 NAx 650. 325 2 300

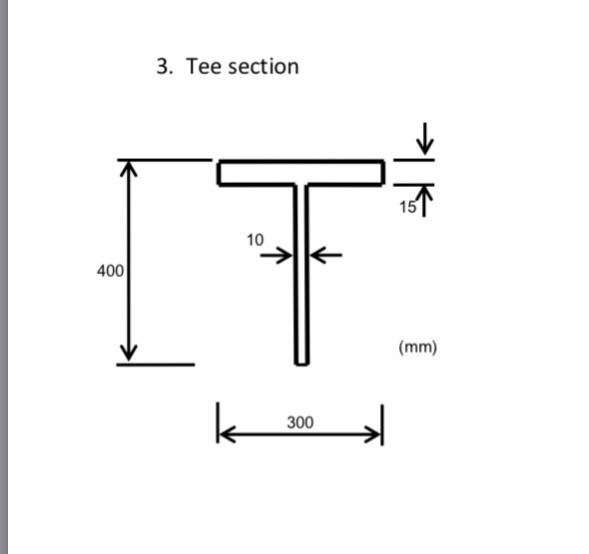

3. Tee section 10 400 300

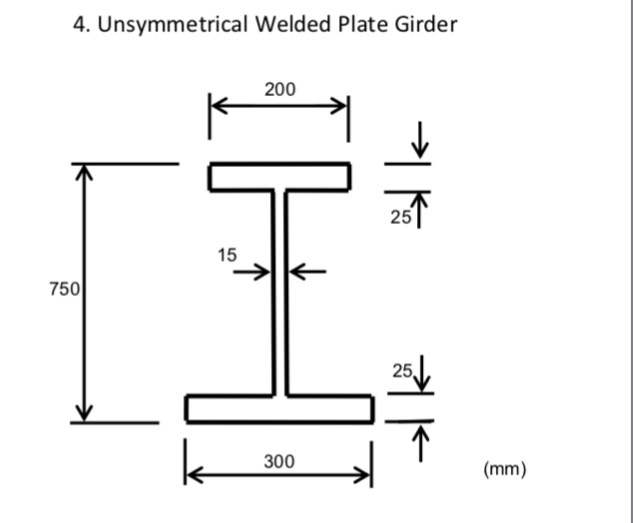

4. Unsymmetrical Welded Plate Girder 200 25 15 750 300
Solution by an expert tutor
Blurred Solution
This question has been solved
Subscribe to see this solution
